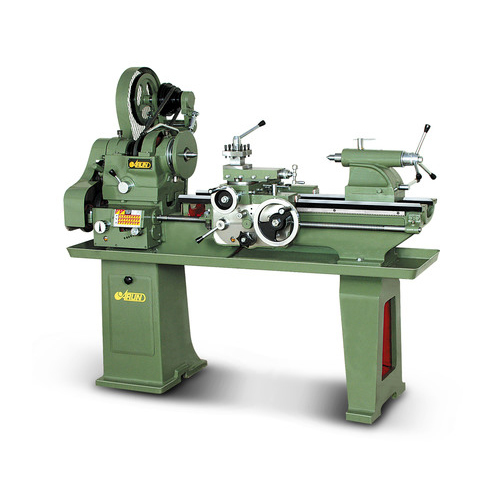

Light Duty Lathe Machine
75000 INR/Unit
Product Details:
- Product Type Machine
- Material Steeliness Steel
- Voltage 220-240 Volt (v)
- Color Green
- Click to View more
X
Light Duty Lathe Machine Price And Quantity
- 75000 INR/Unit
- 1 Unit
Light Duty Lathe Machine Product Specifications
- Green
- Steeliness Steel
- 220-240 Volt (v)
- Machine
Light Duty Lathe Machine Trade Information
- Cash on Delivery (COD) Cash in Advance (CID) Cash Advance (CA)
- 10 Unit Per Month
- 6-12 Days
- =
- Australia Eastern Europe Western Europe Central America Middle East South America Asia North America Africa
- All India
Product Description
By staying informed regarding the business improvements, we as a prime , maker, and supplier are included in offering a superb Light Duty Lathe Machine. Accessible in different specialized determinations, our offered machine is the ideal for sliding, surfacing and tighten cutting operations distinctive commercial enterprises. The machine offered by us is checked on different testing parameters in adherence to the universal quality benchmarks. Additionally, our offered machine can be benefitted by our customers at business driving cost. Our array of ARUN Light Duty Lathe Machine is best acclaimed for features like fabulous usefulness, inconvenience free operation, exceedingly solid, and so.
Technical Specifications:
|
| LIGHT DUTY LATHE MACHINE 1370MM, 1600MM, & 1830 MM |
| CAPACITY | METRIC |
| Height of Centre | 165 mm. |
| Swing Over Bed | 325 mm. |
| Swing Over Cross Slide | 180 mm. |
| Movement of Cross Slide | 225 mm. |
| Swing in Gap | 500 mm. |
| BED |
|
| Bed Type | 2V & 2 Flat |
| Bed Width | 238 mm. |
| Length of Gap in Bed | 110 mm. |
| Length of Gap in Front of Face Plate | 125 mm. |
| MAIN SPINDLE |
|
| Size of Threaded Spindle Nose | 8 T.P.I. 60 mm. |
| Taper Bore in Spindle Sleeve | MT-3 |
| Spindle Bore | 40 mm. |
| TAIL STOCK |
|
| Ram Diameter | 38.1 mm. |
| Taper Bore in Centre Sleeve | MT-3 |
| Ram Travel | 115 mm. |
| COMPOUND SLIDE |
|
| Travel of Compound Slide | 120 mm. |
| Tool Shank Section | 22 x 22 mm. |
| SPEEDS |
|
| No. of Speeds | 8 |
| Range | 35-825 RPM |
| THREAD/ NO. RANGE |
|
| Lead Screw Diameter & Pitch | 25.4 mm. X 4 TPI |
| Metric | 19/0.50 to 8.0 mm. |
| Inch | 23/4 to 40 TPI |
| ELECTRICAL'S |
|
| Main Motor (1440 R.P.M.-AC-3 Phase) | 1 H.P. / 440 V |
| MODEL | ADMIT BETWEEN CENTER | WEIGHT (APPROX.) | FLOOR SPACE (APPROX.) |
| L-1 1370 mm. | 650 mm. | 430 kg. | 1650 x 840 mm. |
| L-2 1600 mm. | 875 mm. | 470 kg. | 1880 x 840 mm. |
| L-3 1830 mm. | 1100 mm. | 490 kg. | 2100 x 840 mm. |
